Home > Products > Soft starter > 75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump

75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;......Keywords:75kw~115kw 220v/380v/440v/660v Soft Starter For Built In Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump - Buy Soft Starter For Built In Bypass Contactor,Soft Starter With Bypass Product on Zhejiang Chuanken Electric Co., Ltd.

Send Inquiry

Product Description

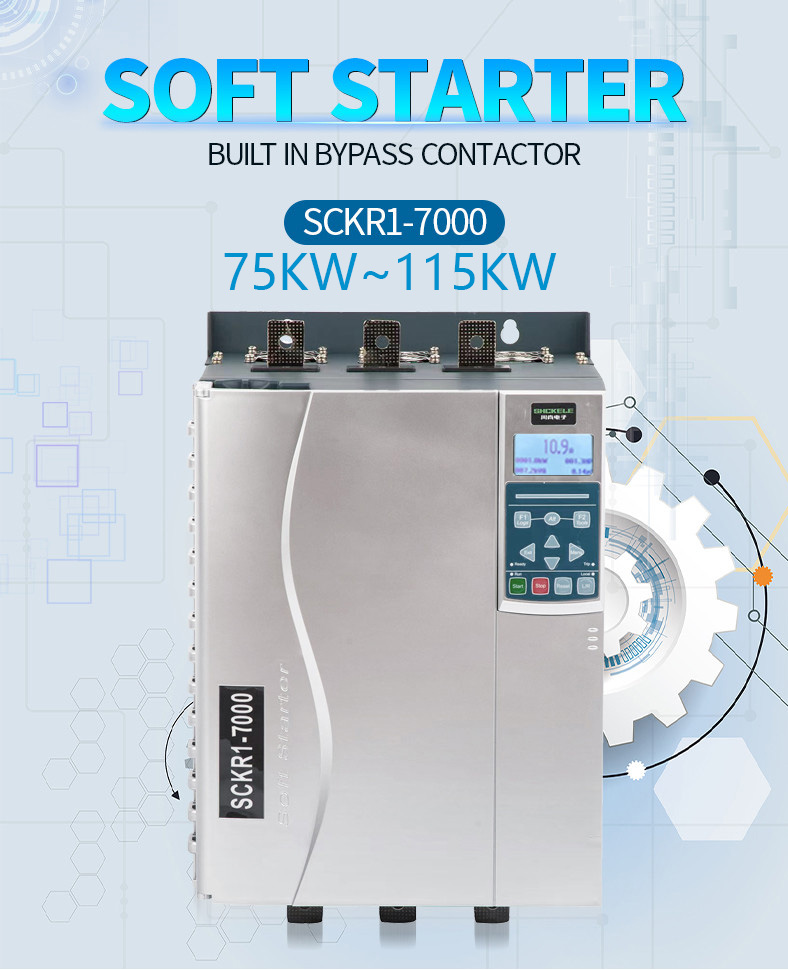

75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump

The soft starter is advanced digital soft starter solution is suitable for the power of 5.5kW TO 800KW motor provides a set of perfectand the installation of the system has the function of protection even in the worst environment also can ensure reliable performance
TWO PHASE OPERATION FUNCTION、
When any phase of the SCR of the soft starter breaks down, the emergency function is opened and it can still run normally







FIRE FIGHTING FUNCTION Turn on the fire fighting function of the soft starter, and all protection functions will be turned off, so that the soft starter can operate normally and the firemen can put out the fire.
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump

Do not need to install the external bypass contactor, new built-in bypass contactorThree times higher than that of ordinary contactor performance, heat dissipation is 2.6 times and 25% security Energy saving 20% service life can reach more than 100000 times
LCD display size：12.4CM*6.5CM，Thickness 1.6cm
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
Radiator
module
display panel
copper bar
communication
packing
Coil transformer LOGO：
300*200*65
MTC300A/1600V
Full series unification
7000series 75~110KW (thin)
Profibus/RS485
274*160*408 mm
Recci
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
18 MOTOR PROTECT FUNCTIONS
Suitable for all kinds of bad environments
1.Start overload protection
2.Running overload protection
3.Starting overcurrent protection
4.Running over current proterction
5. Overvoltage protection
6.Under voltage protection
7.Three-phase unbalance protection
8.Start timeout protection
9.Jog timeout protection
10.Underioad Protection
11.Soft start overheating Protection
11.Soft start overheating Protection
13.Phase-to-phase short circuit Protection
14.Ground Fault Protection
15.Phase sequence protection
16.Thyristor breakdown protection
17.External fault protection
18.Frequency protection
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
Recommended by seller

SCKR1-7000 Series 220V/380V/660V 160KW Built in Bypass Contactor Soft Starter China Trade

$845-1,267 / box

1 box

37kw Bypass Soft Starter Built-In Quality Three-Phase AC Asynchronous Motor for Air Compressor China Trade Factory

$246-253 / box

1 box

Spanish Language LCD Display 3 Phase 220V 380V 480V Motor Soft Starter 7.5KW to 18.5KW

$166-196 / box

1 box

Arabic Language 5.5KW~55KW 220V/380V Built in Bypass Soft Starter Control Three-phase AC Asynchronous Motor Drive for Compressor

$186-336 / box

1 box

75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump

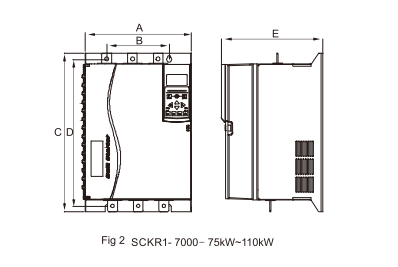

Model
 Overall dimension(mm)
 Install dimension(mm)

Drawing

A
C
E
B
D
d
75KW~115KW
440
530
290
320
530
M8
3
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump

QUICK SETUP

The Quick Setup menu allows you to quickly configure the soft starter for common applications. The soft starter selects
thearameters related to the application and recommends tvpical settines. Yo can adjust each parameter according to your actual needs.Always set parameter A, the rated cul rent of the mptor to match the rated current indicated on the motor plate.The recommended valu is the minimum rated current of the starter
On the screen,the highlighted yalue is the recommended yalueand the value marked with is the loaded value
Feature List
Optional soft start curve
Adaptive control
Constant current
Current ramp
Optional soft stop curve
Taxi stop
Timed voltage ramp soft stop
Adaptive control
Brake
Extended input and output options
Remote control input
(3 fifixed inputs, 2 programmable inputs)
Relay output
(1 fifixed output, 3 programmable outputs)
Analog output
Built-in PT100 RTD input
Optional expansion card
Easy-to-read display shows comprehensive feedback
Removable operation panel
Multilingual feedback
 Event record with date and time stamp
Working counter (starting times, running hours,kilowatt hours)
Performance monitoring (current, voltage, power factor, kilowatt hours)
User-programmable monitoring screen
Customizable protection
Motor overload
Start-up timeout
Under current
Transient overcurrent
Current imbalance
Power frequency
Input trip
Motor thermistor
Power circuit
Phase sequence
Models that meet all your connectivity needs
23A-1600A (rated)
200VAC-440VAC
380VAC-690VAC
 Internal bypass selection
Star connection or delta connection
Advanced application optional features
Input / output extension
 RTD and ground fault protection
DeviceNet, Modbus, Profifibus, Ethernet (Ethernet IP,
Modbus TCP, Profifinet) or USB communication module
00:00
00:00
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
75KW~115KW 220V/380V/440V/660V Soft Starter for Built in Bypass Contactor Can Replace Intelligent Aucom Three-phase Water Pump
Can you provide price sheet and catalog to me ?
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.

Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost

What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.

How to pay it?
You can pay it to Alibaba,Paypal,bank.

How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you.
