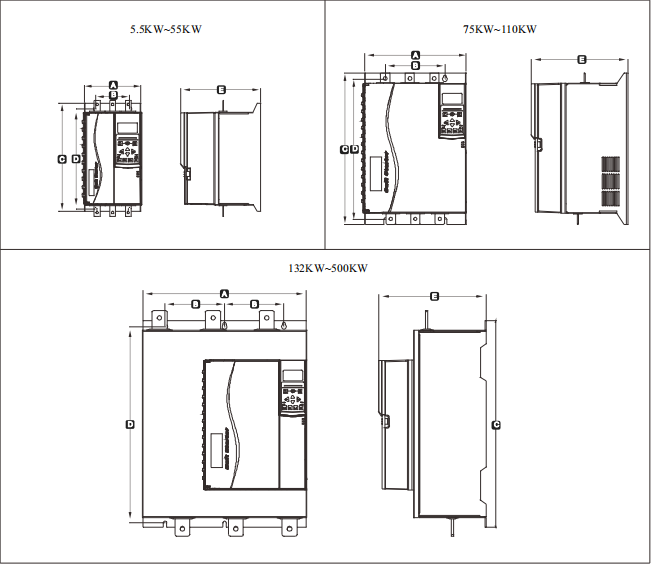

Model | A mm | B mm | C mm | D mm | E mm | Weight kg |
5.5KW~55KW | 152 | 92 | 292 | 269 | 215 | 5.2 |
75KW~110KW | 274 | 160 | 408 | 385 | 260 | 17.5 |
132KW~500KW | 440 | 320(160*2) | 530 | 530 | 290 | 35.5 |
Model | Star connection method | Rated current of delta connection method |
SCKR1-7000-5.5-Z | 11A | 16A |
SCKR1-7000-7.5-Z | 15A | 22A |
SCKR1-7000-011-Z | 23A | 34A |
SCKR1-7000-015-Z | 30A | 44A |
SCKR1-7000-18.5-Z | 37A | 55A |
SCKR1-7000-022-Z | 45A | 67A |
SCKR1-7000-030-Z | 60A | 89A |
SCKR1-7000-037-Z | 75A | 111A |
SCKR1-7000-045-Z | 90A | 133A |
SCKR1-7000-055-Z | 110A | 163A |
SCKR1-7000-075-Z | 150A | 222A |
SCKR1-7000-090-Z | 180A | 266A |
SCKR1-7000-110-Z | 220A | 325A |
SCKR1-7000-132-Z | 255A | 377A |
SCKR1-7000-160-Z | 320A | 474A |
SCKR1-7000-185-Z | 370A | 548A |
SCKR1-7000-200-Z | 400A | 592A |
SCKR1-7000-220-Z | 425A | 639A |
SCKR1-7000-250-Z | 500A | 740A |
SCKR1-7000-280-Z | 560A | 829A |
SCKR1-7000-320-Z | 630A | 932A |
SCKR1-7000-350-Z | 700A | 1036A |
SCKR1-7000-400-Z | 800A | 1184A |
SCKR1-7000-450-Z | 900A | 1332A |
SCKR1-7000-500-Z | 1000A | 1480A |
Application | Parameter | Suggested Value |
Cenreifugal pump | Motor rated cirrent Starting method Adaptive starting curve Start ramp time Stop mode Adaptive stop curve Stop time | Depending on model Adaptive Control Rarly acceleration 10 seconds Adaptive Control Deceleration 15 seconds |
Submersible pump | Motor rated current Starting method Adaptive starting cueve Start ramp time Stop mode Adaptive stop curve Stop time | Depending on the model Adaptive Control Speed up early 5 seconds Adative Control After decelerating 5 seconds |
Damped fan | Motor rated current Starting method Current limit | Depending on model Constant current 350% |
Undamped fan | Motor rated current Starting method Adaptive starting curve Start ramp time Starting limit time Locked rotor time | Depending omdel Adaptive Control Constant acceleration 20 seconds 30 seconds 20 seconds |
Screw compressor | Motor rated current Starting method Srart ramp time Current limit | Depending on model Constant current 5 seconds 400% |
Reciprocating compressor | Motor rated current Starting method Start ramp time Current limit | Depending on model Constant current 5 Second 450% |
Conveyor belt | Motor rated current Starting method Start ramp time Current limit Stop mode Adaptive stop curve Stop time | Depending on model Constant current 5 seconds 400% Adaptive Control Constant deceleration 10 seconds |
Rotary crusher | Motor rated current Starting method Start ramp time Current limit Starting limit time Locked rotor time | Depending on model Constant current 5 seconds 400% 30 seconds 20 seconds |
Jaw Crusher | Motor rated current Starting method Start ramp time Current limit Starting limit time Locked rotor time | Depending on model Constant current 10 seconds 450% 40 seconds 30 seconds |
