16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V

16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;......Keywords:16 Year Vfd Manufacture 0.75kw 1.5kw For Vfd Drive Motor 50hz 60hz Frequency Converter Vfd 220v Single Phase To 3 Phase 380v - Buy Variable Frequency Drive frequency Converter Variable Frequency Drive Vfd Variable Frequency Drive vfd Inverter Frequency Converter Ip65 Vfd Manufacturer Product on Zhejiang Chuanken Electric Co., Ltd.

Send Inquiry

Product Description

16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
Similar Items

Factory Variable Frequency Drive 5HP 8A 4KW Vfd Inverter 3 Phase 380V for AC Motor Wind Generator

$76.50-88.70 / box

1 box

Top Quality CE Certified Mini VFD Motor Control 3 Phase 380V AC 4KW 3.7KW 2.2KW 1.5KW 0.75KW Variable Frequency Drive VFD

$40-52 / piece

5 pieces

16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
Model
KW
HP
Input Current （A）
Output  Current （A）
Power Capacity (KVA)
Thermal Power Consumption (KW)
SCK200 - G1-d75
0.75
1.0
8.2
4
1.5
0.030
SCK200 - G1-1d5
1.5
2.0
14
7
3.0
0.055
SCK200 - G1-2d2
2.2
3.0
23
9.6
4.0
0.072
                                                                    Three-phase 220V,50/60Hz
SCK200 - G2-d75
0.75
1
5
3.8
3
0.030
SCK200 - G2-1d5
1.5
2
5.8
5.1
4
0.055
SCK200 - G2-2d2
2.2
3
10.5
9
5.9
0.072
SCK200 - G2-004
3.7
5
14.6
13
8.9
0.132
SCK200 - G2-5d5
5.5
7.5
26
25
17
0.214
SCK200 - G2-7d5
7.5
10
35
32
21
0.288
SCK200 - G2-011
11
15
46.5
45
30
0.489
SCK200 - G2-015
15
20
62
60
40
0.608
SCK200 - G2-018
18.5
25
76
75
57
0.716
SCK200 - G2-022
22
30
92
91
69
0.887
SCK200 - G2-030
30
40
113
112
85
1.11
SCK200 - G2-037
37
50
157
150
114
1.32
SCK200 - G2-045
45
60
180
176
134
1.66
SCK200 - G2-055
55
75
214
210
160
1.98
SCK200 - G2-075
75
100
307
304
231
2.02
                                                                   Three phase 380V  50/60Hz
SCK200 - G3-d75
            ------
0.75
1
3.4
2.1
1.5
0.027
SCK200 - G3-1d5
SCK200 - P3-1d5
1.5
2
5
3.8
3
0.050
SCK200 - G3-2d2
SCK200 - P3-2d2
2.2
3
5.8
5.1
4
0.066
SCK200 - G3-004
SCK200 - P3-004
3.7
5
10.5
9
5.9
0.120
SCK200 - G3-5d5
SCK200 - P3-5d5
5.5
7.5
14.6
13
8.9
0.195
SCK200 - G3-7d5
SCK200 - P3-7d5
7.5
10
20.5
17
11
0.262
SCK200 - G3-011
SCK200 - P3-011
11
15
26
25
17
0.445
SCK200 - G3-015
SCK200 - P3-015
15
20
35
32
21
0.553
SCK200 - G3-018
SCK200 - P3-018
18.5
25
38.5
37
24
0.651
SCK200 - G3-022
SCK200 - P3-022
22
30
46.5
45
30
0.807
SCK200 - G3-030
SCK200 - P3-030
30
40
62
60
40
1.01
SCK200 - G3-037
SCK200 - P3-037
37
50
76
75
57
1.20
SCK200 - G3-045
SCK200 - P3-045
45
60
92
91
69
1.51
SCK200 - G3-055
SCK200 - P3-055
55
75
113
112
85
1.80
SCK200 - G3-075
SCK200 - P3-075
75
100
157
150
114
1.84
SCK200 - G3-090
SCK200 - P3-090
90
125
180
176
134
2.08
SCK200 - G3-110
SCK200 - P3-110
110
150
214
210
160
2.55
SCK200 - G3-132
SCK200 - P3-132
132
200
256
253
192
3.06
SCK200 - G3-160
SCK200 - P3-160
160
250
307
304
231
3.61
SCK200 - G3-200
SCK200 - P3-200
200
300
385
377
250
4.42
SCK200 - G3-220
SCK200 - P3-220
220
300
430
426
280
4.87
SCK200 - G3-250
SCK200 - P3-250
250
400
468
465
355
5.51
SCK200 - G3-280
SCK200 - P3-280
280
370
525
520
396
6.21
SCK200 - G3-315
SCK200 - P3-315
315
500
590
585
445
7.03
SCK200 - G3-355
SCK200 - P3-355
355
420
665
650
500
7.81
SCK200 - G3-400
SCK200 - P3-400
400
530
785
725
565
8.51
             ------
SCK200 - P3-450
450
600
883
820
630
9.23
                    Item
                      Specifics















Standardfunctions



Maximum frquency
vector control:0~300Hz V/F control:0~3000Hz
carrier frequency
0.5–16 kHz (The carrier frequency is automatically adjusted
based on the load features.)
Input frequency resolution
Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.025%

Control mode
Sensor-less vector control (SFVC)
Closed-loop vector control (CLVC)（+ PG card）Voltage/Frequency (V/F) control
Startup torque
G type: 0.5 Hz/150% (SFVC); 0 Hz/180% (CLVC)
P type: 0.5 Hz/100%
Speed range
1:100 (SFVC)
1:1000(CLVC)
Speed stability accuracy
± 0.5% (SFVC)
± 0.02% (CLVC)
Torque control accuracy
± 10% (SFVC)
± 5% (CLVC)

Overload capacity
G type: 60s for 150% of the rated current, 3s for 180% of the
rated current
P type: 60s for 120% of the rated current, 3s for 150% of the
rated current
Torque boost
Auto boost
Manual boost 0.1%~30.0%

DC braking
DC braking frequency: 0.00 Hz ~ maximum frequency
Braking time: 0.0s~36.0s
Braking trigger current value: 0.0%~100.0%
Built-in simple PLC,
multiple speeds
It realizes up to 16 speeds via the simple PLC function or
combination of DI terminal states.
Built-in PID
It realizes closed loop control system easily.
Overvoltage/ Over current
stall control
The current and voltage are limited automatically during the
running process so as to avoid frequently tripping due to
overvoltage / over current














             RUN

Running command giving
key panel
Control terminals Serial communication port
You can switch between these giving in various ways

Frequency giving
There are 10 kinds frequency giving: digital setting, analog
voltage setting, analog current setting, pulse setting and serial
communication port setting.
You can switch between these giving in various ways.

Auxiliary frequency giving
There are 10 kinds auxiliary frequency giving. It can
implement tiny tuning of auxiliary frequency and frequency
synthesis



Input terminal
Standard:
 6 digital input (DI) terminals, one of which supports up to
50 kHz high-speed pulse input
 2 analog input (AI) terminals, both of them support
0V~10 V voltage input or 0mA~20mA current input
 Expanding capacity:
 many DI terminals
 1 AI terminal that supports -10V~10 V voltage input.




Output terminal
Standard:
 1 high-speed pulse output terminal (open-collector) that
supports 0–50 kHz square wave signal output
 1 digital output (DO) terminal 1 relay output terminal
 2 analog output (AO) terminals, both of them supports
0mA~20mA current output or 0V~10V voltage output.
 Expanding capacity:
 many DO terminals
 many relay output terminals




 Display and
 keypad
operation
LED display
It displays the parameters.
LCD display
It is optional, supports panel display in Chinese or English
language.
Parameters copy
Optional LCD keypad can copy parameters.
Key locking and function
selection
It can lock the keys partially or completely and define the
function range of some keys so as to prevent misoperation.
Protection mode
Motor short-circuit detection at power-on, input/output phase
loss protection, over current protection, overvoltage
protection, less voltage protection, overheat protection and
overload protection,etc
Basic function
*highest frequency: Vector control: 0~300HzV/F; control:0~3000Hz
*Carrier frequency: 0.5kHz~16kHz carrier frequency can be automatically adjusted
*Input frequency resolution: Digital setting: 0.01Hz; simulation setting: maximum frequency* 0.025%
*conreol mode: Open loop vector conreol(SVC),closed loop cector conreol (FVC),V/F control
*starting torque: G model: 0.5hz/150%(SVC),closed loop vector control (FVC),V/F control
*speed range:1:100(SVC) ; 1:1000(FVC)
*steady speed precision: ±0.5%（SVC）; ±0.02%（FVC)
*torque conreol accuracy: ±5%（FVC）
*overload capacity: G-type machine: 150% rated current 60s;180% rated current,3s ; P-type machine: 120% rated current, 3s
*torque increase: automatic torque lifting; manual torque increases by 0.1%~30.0%
*V/F curve: three ways: linear;multipoint;V/F curve of type N (1.2,1.4,1.6,1.8,2)
*V/F separation: two ways: full separation and half separation
*acceleration deceleration: four kinds of acceleration time range:0.00s~65000s.
*Dc brake: Dc braking frequency: 0.00Hz~maximum frequency ; Braking time: 0.0s~36.0s ; Braking action current value:0.0%~100.0%
*Inching contro: frequency range: 0.00Hz~50.00Hz.Inching acceleration and deceleration time: 0.00s~65000s
*PLC, multi-speed operation: Up to 16 speed runs through bulit-in PLC or control terminal
*Built-in PID: It is convenient to realize process control closed-loop control system
*Voltage adjustment(AVR): When the network voltage changes, it can automatically protect the output voltage constant
*Over drain rate control: The current and voltage are automatically limited during operation
*Fast current limiting function:Minimize overcurrent fault, protect inverter normal operation
*Torque limitation: The characteristics of "excavator"automatically limit the torque during operation to prevent frequent
overcurrent trip; The closed-loop vector mode can realize torque control
Personal function
*Excellent performance: Current vector control to achieve asynchronous motor and asynchronous motor control
*Instantaneous stop: Voltage decrease is compensated by the energy feedback from the load
*Rapid current limiting: Avoid frequency converter frequent overcurrent fault
*Virtual IO: Five groups of virtual DIDO, can achieve simple logic control
*Timing control: Timing control function; set the time range from 0.0Min to 6500.0Min
*Multiple motor switching: Two sets of motor parameters, can achieve two motor switching conreol
*Multithreaded bus support: Current support: rs-485 bus,later will support profibus-dp,can Open and other buses
*Motor overheat protection: PG card interface can input the motor temperature simulation quantity
*Multi-encoder support: Support differential, open collector, UVW, rorary transformer, sine and cosine encoders
*Background software: Through virual oscilloscope the internal state of inverter can be monitored graphically
Run
*Command source: Operation panel is given, control terminal is given, serial communication port is given
*Frequency source: 10 frequency sources: digital given, analog voltage given, analog current given, pulse given, serial port
given. Can be switched through a variety of ways
Auxiliary frequency source: 10 auxiliary frequency sources.lt
*The input terminals: Standard:
6 digital input terminals, 1 support up to 50kHz high-speed pulse input
2 analog input terminals, 2 support 0~10V voltage input or 0~20mA current input expansion capacity
*The output termunals: Standard:
1 high speed pulse output terminal(optional open collector),support 0~50kHz square wave signal output1 digital output terminal2
sets of relay output terminals1 analog output terminal,1 support 0~20 digital output or 0~10V voltage output expansion capacity
Display and keyboard operation
*LED display: Display parameters
*LCD display: Optional, Chinese/English prompt operation content
*Parameters of the copy: Rapid replication of parameters can be achieved through LCD operation panel options
*Key locking: Implement partial or full key lock,define the scope of some keys to prevent misoperation
Protection function: short circuit detection of the upper motor, input and output phase loss protection,over-current
protection,over-voltage protection,overload protection,etc
Envi ronment
*Use place: Indoor,not directly exposed to the sun, no dust,corrosive gas, combustible gas, oil mist
*The altitude: Below 1000m,above 1000m derogated use
*Environment temperature: -10℃~+40℃(ambient temperature is 40℃~50℃, apply for derating)
*Humidity: Less than 95%RH,no condensation
*Vibration: Less than 5.9m/s2 (0.6g)
*Storage temperature: -20℃~+60℃

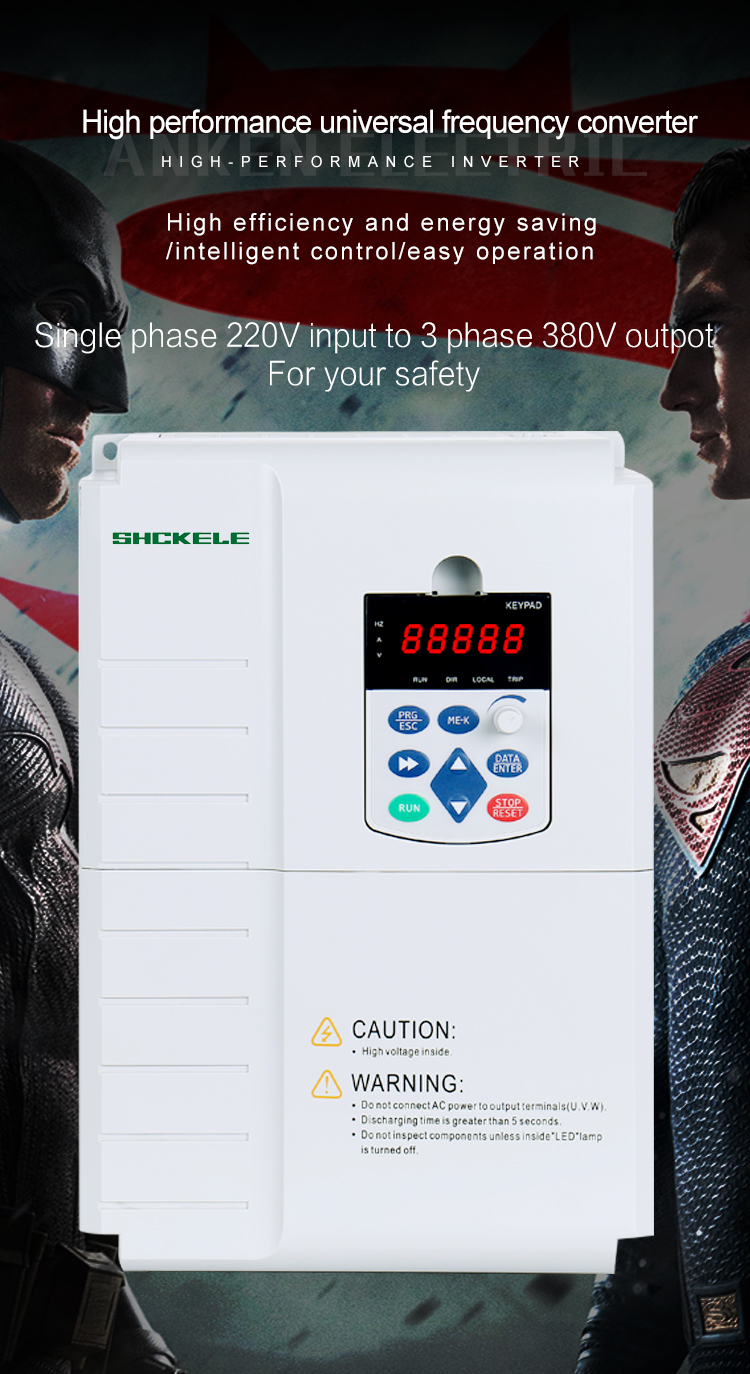

16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
00:00
00:00
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V

Our after-sales service commitment to customers: 1.Our warranty Is for two years. 2. As long as customers buy our products, we will unconditionally give customers technical support, until customers solve the problem. 3. During the warranty period, if there is any problem with the product quality, we are willing to replace the parts for free. If the problem is serious, we are willing to send a new one for free.
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
Can you provide price sheet and catalog to me ?
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.

Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost

What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.

How to pay it?
You can pay it to Alibaba,Paypal,bank.

How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V
16 Year VFD Manufacture 0.75KW 1.5KW for VFD Drive Motor 50Hz 60Hz Frequency Converter VFD 220V Single Phase to 3 Phase 380V

Product Tag

Related Products

Customizable 0.75KW 4KW Single Phase 220V Input Pump Inverter 380V Nominal AC Drive Inverter 3 Phase 220V Output for MotorCustomizable 0.75KW 4KW Single Phase 220V Input Pump Inverter 380V Nominal AC Drive Inverter 3 Phase 220V Output for Motor

Industrial Grade 3 Phase 220V VFD AC Drive Inverter 0.75KW to 4KW for Motors for MixerIndustrial Grade 3 Phase 220V VFD AC Drive Inverter 0.75KW to 4KW for Motors for Mixer

Industrial-grade InvertersVFD 3 Phase 220V 380V 0.75KW 1.5KW 2.2KW 4KW AC Drive Motor Drive Variable Frequency Drivers for PumpIndustrial-grade InvertersVFD 3 Phase 220V 380V 0.75KW 1.5KW 2.2KW 4KW AC Drive Motor Drive Variable Frequency Drivers for Pump

Can Remotely 50Hz/60HZ 3 Phase Online 380V 45KW Power Soft Starter 80A for Electric Motor Spiral Transmission TapeCan Remotely 50Hz/60HZ 3 Phase Online 380V 45KW Power Soft Starter 80A for Electric Motor Spiral Transmission Tape

China Top 10 Quality for Three Phase Motor AC Motor Soft Starter 3 Phase 380V 5.5KW to 400KW Online Soft StarterChina Top 10 Quality for Three Phase Motor AC Motor Soft Starter 3 Phase 380V 5.5KW to 400KW Online Soft Starter

Motor Drive 5.5KW 7.5KW 11KW 15KW 220V 380V 440V 3 Phase AC Built-in Bypass Intelligent Electric Motor Soft Starter for PumpMotor Drive 5.5KW 7.5KW 11KW 15KW 220V 380V 440V 3 Phase AC Built-in Bypass Intelligent Electric Motor Soft Starter for Pump

Related Category

AC Drive

other

Soft starter

topsale products

Send Inquiry

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours.
验证码,看不清楚?请点击刷新验证码
Buyer Services
How to buy
Browse by catagories
Browse by Companies
B2B Articles
Seller Services
How to sell
Trade Opportunities
Post Products
Manage Products
Services
Latest Souring Requests
Product Update
China Suppliers Mobile Site
About
About us
Link to us
Contact us
Site map

Copyright © china-electricpro.com Online Inc. All Rights Reserved.
