Product Description

High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
Model
KW
HP
Input Current
(A)
Output Current
(A)
Power Capacity
(KVA)
Thermal Power
Consumption
(KW)
                                                                            Single-phase 220V，50/60Hz
SCK200-G1-d75
0.75
1.0
8.2
4
1.5
0.030
SCK200-G1-1d5
1.5
2.0
14
7
3.0
0.055
SCK200-G-2d2
2.2
3.0
23
9.6
4.0
0.072
                                                                             Three-phase 220V，50/60Hz
SCK200-G2-d75
0.75
1
5
3.8
3
0.030
SCK200-G2-1d5
1.5
2
5.8
5.1
4
0.055
SCK200-G2-2d2
2.2
3
10.5
9
5.9
0.072
SCK200-G2-004
3.7
5
14.6
13
8.9
0.132
SCK200-G2-5d5
5.5
7.5
26
25
17
0.214
SCK200-G2-7d5
7.5
10
35
32
54
0.288
SCK200-G2-011
11
15
46.5
45
30
0.489
SCK200-G2-015
15
20
62
60
40
0.608
SCK200-G2-018
18.5
25
76
75
57
0.716
SCK200-G2-022
22
30
92
71
69
0.887
SCK200-G2-030
30
40
113
112
85
1.11
SCK200-G2-037
37
50
157
150
114
1.32
SCK200-G2-045
45
60
180
176
134
1.66
SCK200-G2-055
55
75
214
210
160
1.98
SCK200-G2-075
75
100
307
304
231
2.02
                                                                              Three-phase 380V，50/60Hz
SCK200 - G3-d75
          --------
0.75
1
3.4
2.1
1.5
0.027
SCK200 - G3-1d5
SCK200 - P3-1d5
1.5
2
5
3.8
3
0.050
SCK200 - G3-2d2
SCK200 - P3-2d2
2.2
3
5.8
5.1
4
0.066
SCK200 - G3-004
SCK200 - P3-004
3.7
5
10.5
9
5.9
0.120
SCK200 - G3-5d5
SCK200 - P3-5d5
5.5
7.5
14.6
1.3
8.9
0.195
SCK200 - G3-7d5
SCK200 - P3-7d5
7.5
10
20.5
17
11
0.262
SCK200 - G3-011
SCK200 - P3-011
11
15
26
25
17
0.445
SCK200 - G3-015
SCK200 - P3-015
15
20
35
32
21
0.553
SCK200 - G3-018
SCK200 - P3-018
18.5
25
38.5
37
24
0.651
SCK200 - G3-022
SCK200 - P3-022
22
30
45.5
45
30
0.807
SCK200 - G3-030
SCK200 - P3-030
30
40
62
60
40
1.01
SCK200 - G3-037
SCK200 - P3-037
37
50
76
75
57
1.20
SCK200 - G3-045
SCK200 - P3-045
45
60
92
91
69
1.51
SCK200 - G3-055
SCK200 - P3-055
55
75
113
112
85
1.80
SCK200 - G3-075
SCK200 - P3-075
75
100
157
150
114
1.84
SCK200 - G3-090
SCK200 - P3-090
90
125
180
176
134
2.08
SCK200 - G3-110
SCK200 - P3-110
110
150
214
210
160
2.55
SCK200 - G3-132
SCK200 - P3-132
132
200
256
253
192
3.06
SCK200 - G3-160
SCK200 - P3-160
160
250
307
304
231
3.61
SCK200 - G3-200
SCK200 - P3-200
200
300
385
377
250
4.42
SCK200 - G3-220
SCK200 - P3-220
220
300
385
377
250
4.42
SCK200 - G3-250
SCK200 - P3-250
250
400
468
465
355
5.51
SCK200 - G3-280
SCK200 - P3-280
280
370
525
520
396
6.21
SCK200 - G3-315
SCK200 - P3-315
315
500
590
585
445
7.03
SCK200 - G3-355
SCK200 - P3-355
355
420
665
650
500
7.81
SCK200 - G3-400
SCK200 - P3-400
400
530
785
725
565
8.51
         ---------
SCK200 - P3-450
450
600
883
820
630
9.23
                    Item
                      Specifics















Standardfunctions



Maximum frquency
vector control:0~300Hz V/F control:0~3000Hz
carrier frequency
0.5–16 kHz (The carrier frequency is automatically adjusted
based on the load features.)
Input frequency resolution
Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.025%

Control mode
Sensor-less vector control (SFVC)
Closed-loop vector control (CLVC)（+ PG card）Voltage/Frequency (V/F) control
Startup torque
G type: 0.5 Hz/150% (SFVC); 0 Hz/180% (CLVC)
P type: 0.5 Hz/100%
Speed range
1:100 (SFVC)
1:1000(CLVC)
Speed stability accuracy
± 0.5% (SFVC)
± 0.02% (CLVC)
Torque control accuracy
± 10% (SFVC)
± 5% (CLVC)

Overload capacity
G type: 60s for 150% of the rated current, 3s for 180% of the
rated current
P type: 60s for 120% of the rated current, 3s for 150% of the
rated current
Torque boost
Auto boost
Manual boost 0.1%~30.0%

DC braking
DC braking frequency: 0.00 Hz ~ maximum frequency
Braking time: 0.0s~36.0s
Braking trigger current value: 0.0%~100.0%
Built-in simple PLC,
multiple speeds
It realizes up to 16 speeds via the simple PLC function or
combination of DI terminal states.
Built-in PID
It realizes closed loop control system easily.
Overvoltage/ Over current
stall control
The current and voltage are limited automatically during the
running process so as to avoid frequently tripping due to
overvoltage / over current














             RUN

Running command giving
key panel
Control terminals Serial communication port
You can switch between these giving in various ways

Frequency giving
There are 10 kinds frequency giving: digital setting, analog
voltage setting, analog current setting, pulse setting and serial
communication port setting.
You can switch between these giving in various ways.

Auxiliary frequency giving
There are 10 kinds auxiliary frequency giving. It can
implement tiny tuning of auxiliary frequency and frequency
synthesis

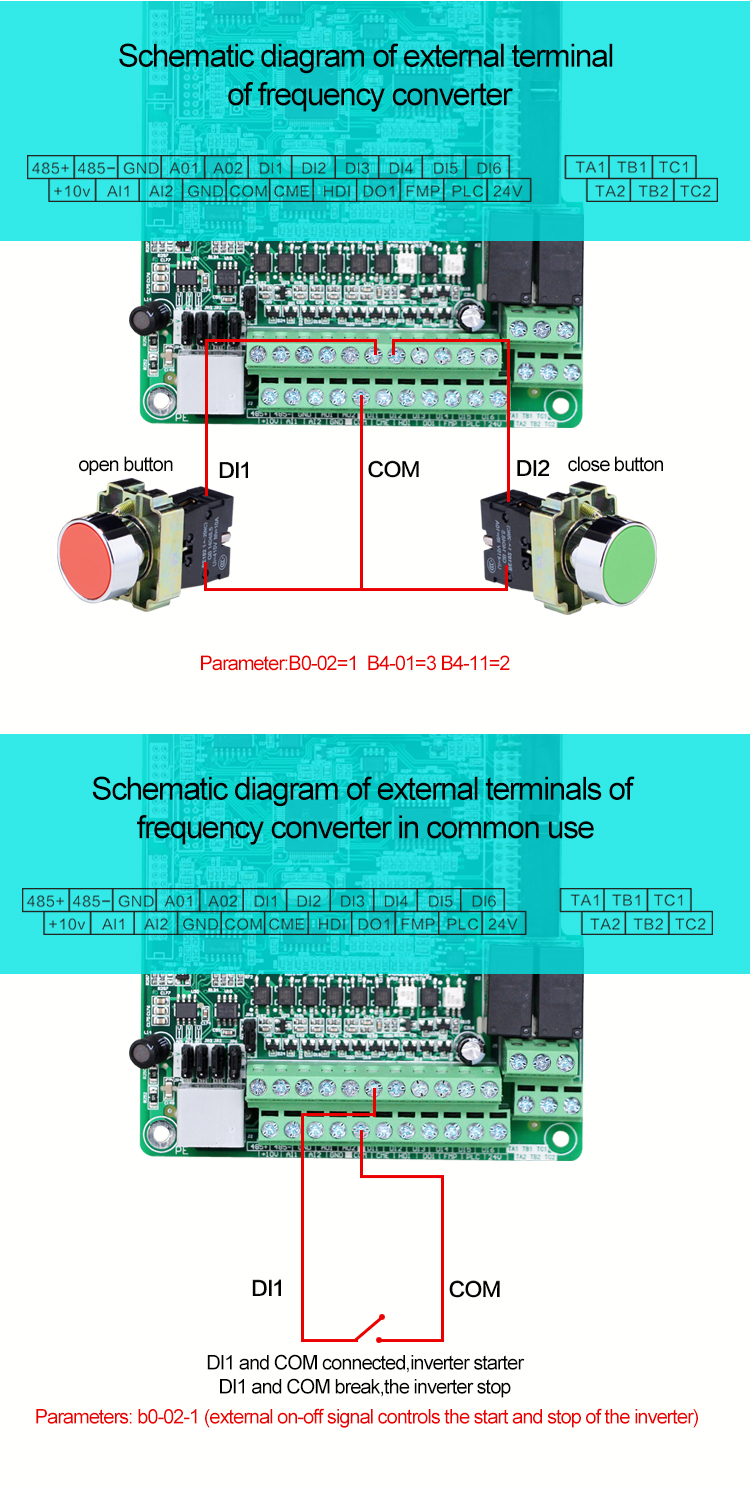

Input terminal
Standard:
 6 digital input (DI) terminals, one of which supports up to
50 kHz high-speed pulse input
 2 analog input (AI) terminals, both of them support
0V~10 V voltage input or 0mA~20mA current input
 Expanding capacity:
 many DI terminals
 1 AI terminal that supports -10V~10 V voltage input.




Output terminal
Standard:
 1 high-speed pulse output terminal (open-collector) that
supports 0–50 kHz square wave signal output
 1 digital output (DO) terminal 1 relay output terminal
 2 analog output (AO) terminals, both of them supports
0mA~20mA current output or 0V~10V voltage output.
 Expanding capacity:
 many DO terminals
 many relay output terminals

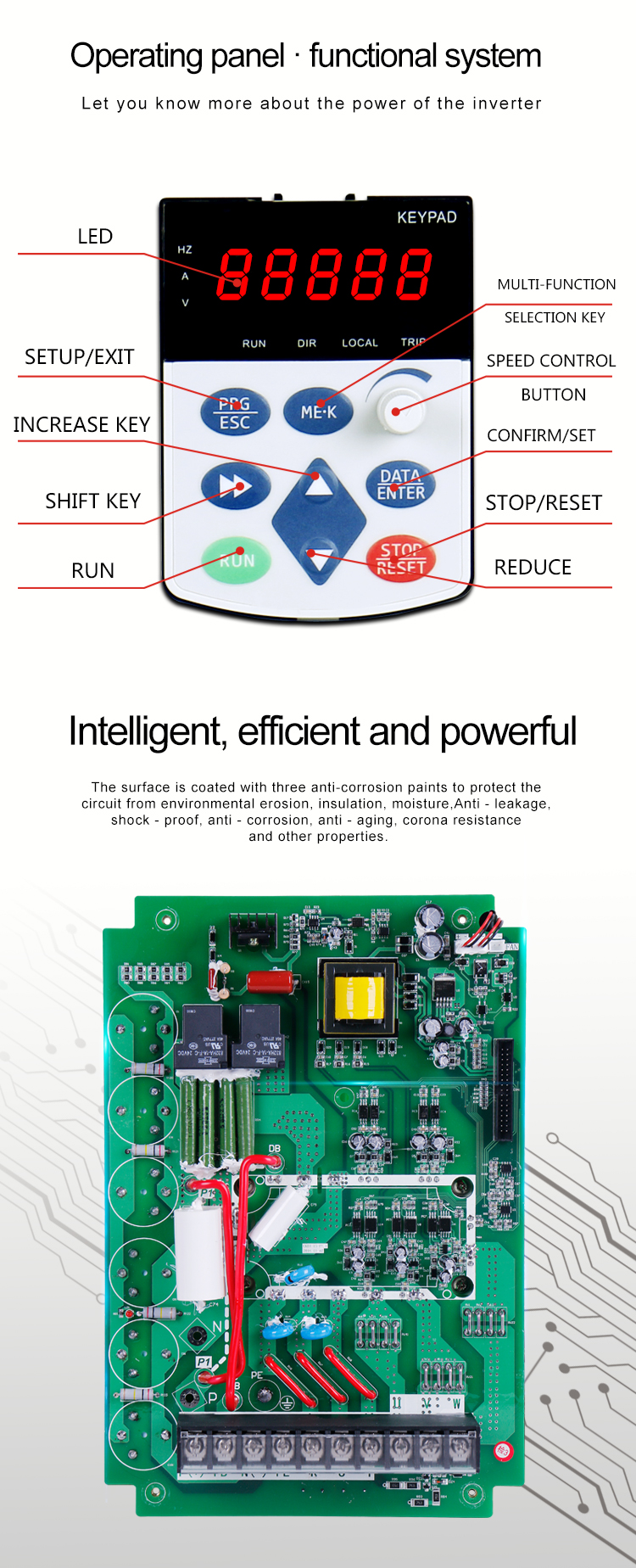

 Display and
 keypad
operation
LED display
It displays the parameters.
LCD display
It is optional, supports panel display in Chinese or English
language.
Parameters copy
Optional LCD keypad can copy parameters.
Key locking and function
selection
It can lock the keys partially or completely and define the
function range of some keys so as to prevent misoperation.
Protection mode
Motor short-circuit detection at power-on, input/output phase
loss protection, over current protection, overvoltage
protection, less voltage protection, overheat protection and
overload protection,etc
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
00:00
00:00
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller

Our after-sales service commitment to customers: 1.Our warranty Is for two years. 2. As long as customers buy our products, we will unconditionally give customers technical support, until customers solve the problem. 3. During the warranty period, if there is any problem with the product quality, we are willing to replace the parts for free. If the problem is serious, we are willing to send a new one for free.
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
High Quality 18.5KW 380V 25HP VFD 2.2KW 3HP Input 3 Phase 220 60 HZ Output 3 RS485 AC Motor VFD Pump Controller
Can you provide price sheet and catalog to me ?
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.

Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost

What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.

How to pay it?
You can pay it to Alibaba,Paypal,bank.

How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you
